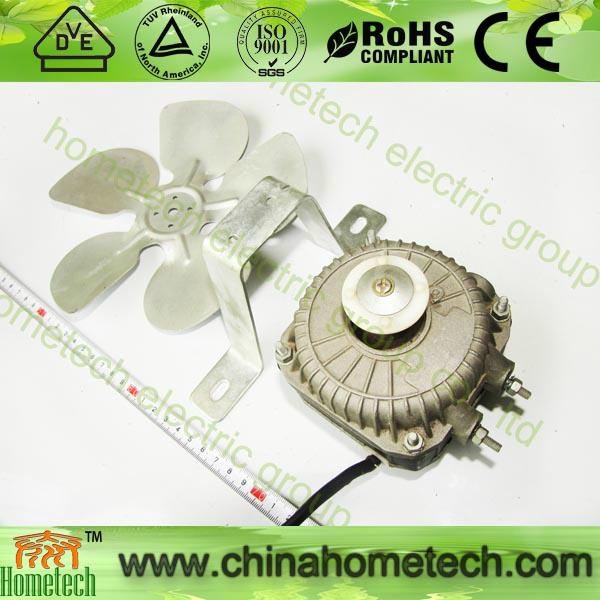

ac shaded pole motor 8023

  • ac shaded pole motor 8023
  • ac shaded pole motor 8023
Model No.︰HT-8023
Brand Name︰HOMETECH
Country of Origin︰China
Minimum Order︰1000 pc
Share on:

 Total 35 Related Items
Prev1011121314Next

Product Description

Feature

Place of Origin:                             China (Mainland)
Brand Name:                                 Hometech
Model Number:                             HT-8023
type:                                                 Shaded pole motor
number of poles:                          2-pole motor
insulation class:                           E/B/F/H
power:                                           100-240V 50/60Hz
flammability rating:                      VO-V2
purity of Aluminum of rotor:        99.99%
lamination size:                            58mm
stack thickness:                          18/20/25/30/33/40/50mm
main application:                         FREEZER FAN,
packing details:                           53*24.5*18cm

specificaiton:

power supply:              110-240V, 50/60Hz;
Speed:                          2800 rpm(no load);
Input power:                 40-250W;
lamination size:            diameter of 58 mm;
stack thickness:             18,20,25,30,35,50;
Shaft diameter size :      4 mm;
shaft material:                 stainless steel or 45# steel;
bracket:                            steel or Aluminium,
bearing:                           ball bearing, can be oil bronze or iron base sleeve bearing,
hardness:                        HRC40-60;
flammability rating:         VO-V2;
wire:                                varnished copper wire,(aluminium wire or copper-clad aluminium available, but strongly suggest not to use);
Insulation class:              CL. E/B/F/H, With T/P protector;
Air gap tolerance:           0.35-0.40 ;
Aluminum casting:          99.7-99.9%;
Electric strength level:   1800V ac per 1sec.;
Payment Terms︰TT/LC
