capacitor motor

Model No.︰YZS-35
Brand Name︰HOMETECH
Country of Origin︰China
Minimum Order︰1000 pc
Share on:

 Total 10 Related Items
Prev12345Next

Product Description

Feature

1-capacitor motor;
2-model: YZS-353-CKD parts available;
4-Low noise and long lifetime;
5-ball bearing.











specificaiton:
 P ower supply:              110-240V, 50/60Hz;
Speed:                          2800 rpm(no load);
Input power:                 40-250W;
lamination size:            Φ80mm;
stack thickness:             18,20,25,30,35,50;
Shaft diameter size :      6 or 8 mm;
shaft material:                 stainless steel or 45# steel;
bracket:                           steel or Aluminium,
bearing:                           ball bearing, can be oil bronze or iron base sleeve bearing,
hardness:                        HRC40-60;
flammability rating:         VO-V2;
wire:                               varnished copper wire,( aluminium wire or copper-clad aluminium available, but strongly suggest not to use );
Insulation class:              CL. E/B/F/H, With T/P protector;
Air gap tolerance:           0.35-0.40 ;
Aluminum casting:          99.7-99.9%;
Electric strength level:   1800V ac per 1sec.;
speed:                             three, two or single speed.




main application:           Cooker hood, Range hood, chimney hood, Ventilation fan etc.


Payment Terms︰TT/LC

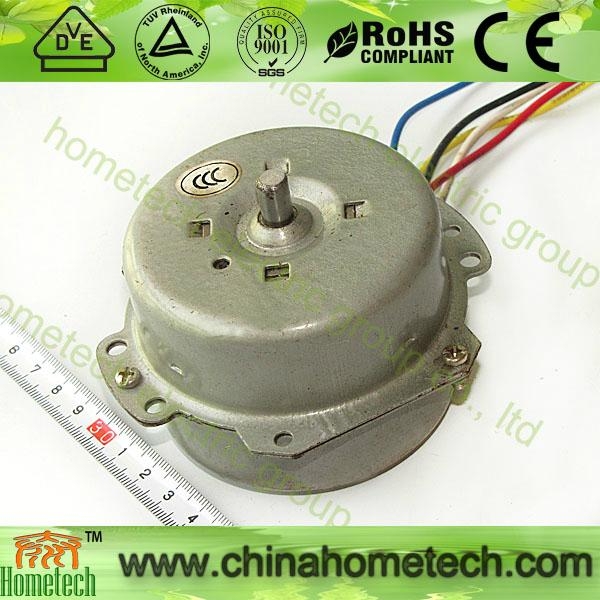

Product Image
